Ground Screws For Solar Mounting Systems

In the fast-growing renewable energy sector, solar photovoltaic (PV) installations require foundation solutions that strike a balance between stability, efficiency, cost-effectiveness, and environmental sustainability. As a modern alternative to traditional concrete foundations, ground screws have become the go-to foundational component for solar mounting systems, widely used in residential, commercial, agricultural, and utility-scale solar farm projects across the globe.

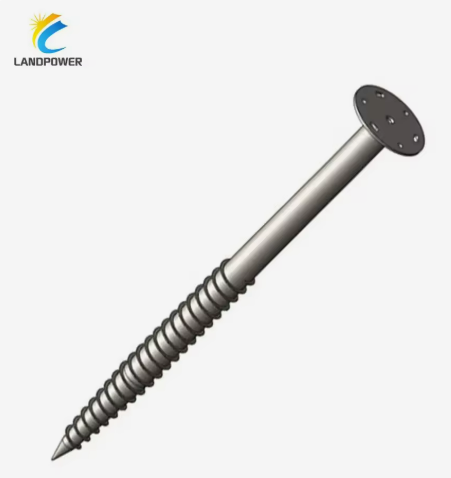

Also referred to as helical piles or screw anchors, solar ground screws are heavy-duty steel anchoring structures engineered specifically to support solar mounting setups. Typically made from high-grade Q235 or S355 steel with a hot-dip galvanized finish (zinc coating ≥80μm), they consist of a central steel shaft and welded helical plates. This unique spiral design allows the screws to be mechanically twisted directly into the soil, removing the need for extensive excavation, concrete pouring, and the long curing times required by conventional foundation methods.

The unmatched benefits of ground screws make them indispensable in modern solar installation projects. First and foremost is their exceptional installation efficiency. Compared to concrete foundations, ground screw installation cuts construction time by up to 75%. Professional crews can install 150 to 400 screws per day, allowing solar projects to move forward quickly and significantly shortening the overall construction timeline. What’s more, installation isn’t limited by seasons. It can proceed smoothly in low-temperature, frosty conditions where concrete curing isn’t feasible, ensuring projects can be built year-round.

When it comes to structural performance and adaptability, ground screws offer reliable load-bearing capacity and stability. Depending on soil conditions, a single ground screw can support loads ranging from 3,500 to 20,000 pounds, providing steady, long-term support for solar mounting brackets and panels. They work well across a variety of complex terrains and soil types, including sand, loam, clay, and uneven sloped land, solving the construction challenges traditional foundations face on unique landscapes. Plus, the galvanized steel gives ground screws excellent corrosion and weather resistance, protecting them from wind, rain, and moisture.

While ground screws offer versatile performance, they do have minor limitations. They aren’t ideal for extremely hard rock formations or special geological layers with large obstacles, where drilling and installation can’t be completed easily. However, in most standard solar installation scenarios, their overall advantages far outweigh these limitations.

As global solar energy development booms, the demands for solar installation technology continue to evolve. Ground screw foundation systems perfectly align with the industry’s focus on high efficiency, sustainability, low cost, and long durability. As a mature, innovative foundational technology, they will increasingly replace traditional concrete foundations, becoming the mainstream standard for solar mounting system construction and providing a solid base for the widespread adoption of clean solar energy around the world.
