This is an accessory that is frequently used in the solar mounting project: Hanger Bolt.

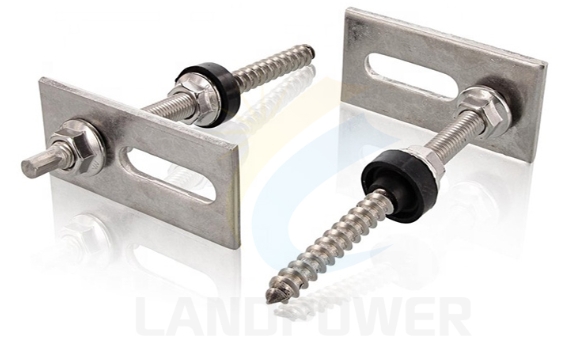

Hanger Bolt is one kind of fixings with mounting structure used to screw into steel purins or wooden rafter on corrugated andtrapezoidal roofs. Hanger bolt is freguently used with L feet(L bracket) or stainless steel plate to combine with mounting ralil. TheHanger Bolt for solar panel installation is coming with three flange nuts and one UV resistant EPDM washer, the EPDM washer wilcrate a weatherproof seal when pushing against the roof sheet.

Use of Hanger Bolt

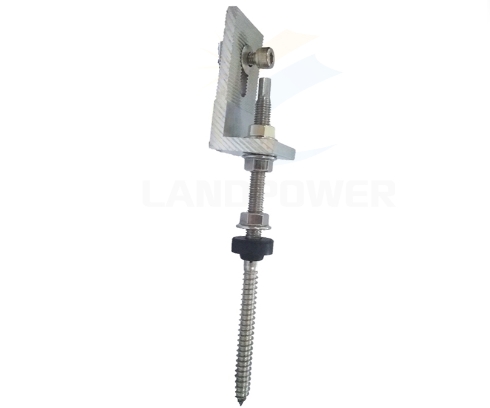

Hanger Bolt normally combine with L feet or stainless steel plate to attach to solar mounting ral. The embedment length of hangelbolt is trapezoidal profile height/sandwich thickness plus 25mm.

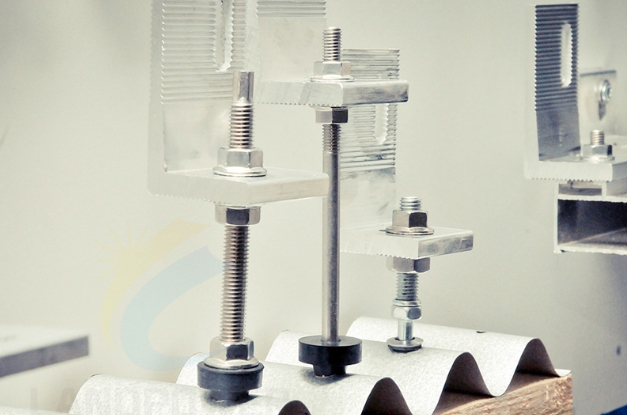

Hanger Bolt on Corrugated Roof Installation Demo.

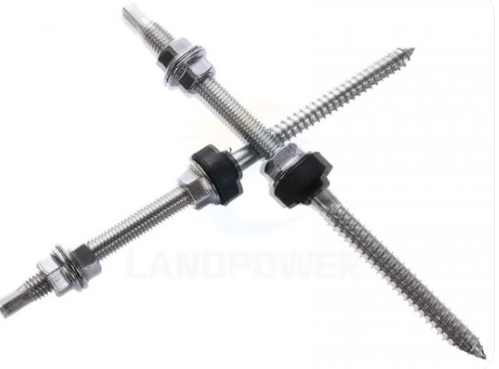

Dimension: M10*150mm,M10*200mm,M10*250mm,M12*150/200/250mm or customized

Accessory: 3 pieces of flange nuts and EPDM washer

If you need this product, please feel free to contact us. Hope can work with you to cut your cost and reach mutual benefit.  (sales7@landpowersolar.com)
